Gameboy Camera To Parallel Port Interface

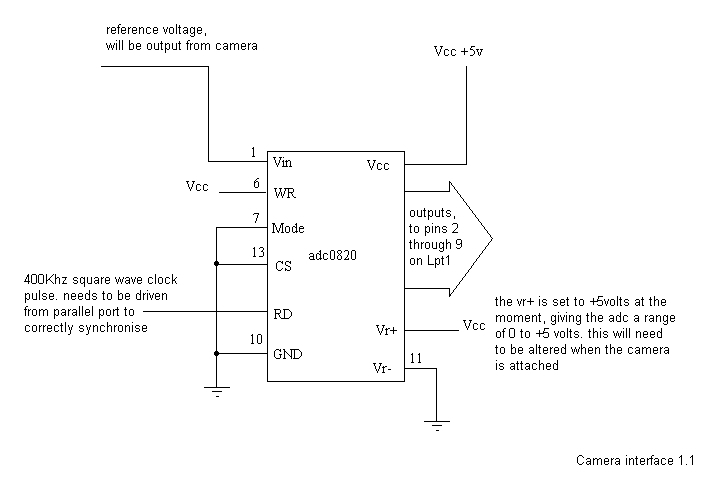

ok here it is the A/D part of the circuit. If you get anything going please mail me with the results so i can upload them.

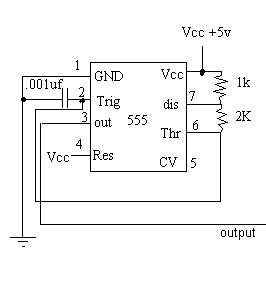

below is also a posible clock for the adc, it works with LEDs on the outputs but give shocking data to the parallel port.


if you have any more questions please feel free to drop me a line.

you will also need to dig up a copy of the datasheet for the ADC0820 analog to digital converter. this can be found on Victor Kemp's site (check links) or with a quick web search. it will help immensly with development for the camera.



oops I forgot to upload the c++ program yesterday, here it is
